The Bind When It Comes to Using a Binder – Part 5

You might recall a series more than a bit ago from Dr Alan Garner covering lots of thoughts on pelvic fractures and what might make sense for prehospital care. Well, he’s back at it with a case to get things rolling.

It is amazing what you find when you go looking.

Those who are regular readers of the CareFlight Collective will be aware of my concerns about the use of pelvic binders in lateral compression (LC) type fractures.  You can find parts 1, 2, 3 and 4 here.  In short a binder in the context of a LC fracture replicates the force vector that caused the injury and may make fracture displacement worse.  There is evidence of this in both cadaver models and in real live trauma patients.  However blind use of binders without knowing the fracture type (and even where it is known to be LC) has been considered safe as there were no reports that patients had deteriorated after application – until now.

Last year one of our teams applied a binder to a haemodynamically stable patient with a LC fracture.  There was immediate haemodynamic deterioration and new leg length discrepancy which had not been present prior to application of the binder.  The case report has been accepted for publication by the Air Medical Journal and about now would be a good time to say thanks to our co-authors from Westmead Hospital, Jeremy Hsu and Anne Douglas.  You can find a copy of the accepted manuscript accepted manuscript here.  You need to go and have a read of the manuscript then come back for the following comments to make sense so I suggest you do that now.

Go on…



I can wait …



Continuing…

Now that you have read the case report you can appreciate that this incident caused us considerable angst.  We knew this was theoretically possible but it was still a shock when it actually happened.  It has caused us to review our practice around binders to try and find the safest approach.

But at the same time we need to acknowledge that we live in a space of considerable uncertainty because we don’t have radiographs to guide our management in prehospital care.  All we have is our reading of the mechanism (which is often pretty unclear), the clinical state of the patient and perhaps a finding of pubic symphysis diastasis on ultrasound to guide us.  We have to acknowledge that we are going to get this wrong a reasonable proportion of the time.

So here is our reasoning and the place we ended up.

Firstly we need to remember that there is still no study of any kind (RCT or cohort) that has shown a statistically significant improvement in survival with binders.  There is some suggestive case series data (mostly in anterior compression or “open book” fracture types) and the benefit observed is raised BP and possibly blood product usage, not survival.  That is it.  As it seems we can definitely cause harm, it is worth keeping in mind just how poor the evidence for benefit is as we work our way through the approach to binder application.  One of my very experienced colleagues refers to binders as “pelvic warmers” due to the almost complete lack of evidence of benefit and I can’t tell him he is wrong.

First…

The first thing to consider is the stability of the patient.  Placing binders in stable patients with a possible mechanism has been considered acceptable practice despite the theoretical risks and indeed it is the policy of our local Ambulance service in NSW to do exactly that.

Other services such as Queensland have a more conservative approach.  They position the binder if there is a suggestive mechanism but only tighten it if the patient is unstable or becomes so.  Given that there is absolutely zero evidence that haemorrhage has ever been prevented by placing a binder I think the Queensland approach is a good one.   I know that there are reports of binders reducing fractures so perfectly that they have been hard to identify on subsequent imaging and it is impossible to say whether they would have bled without the binder, but benefit from prophylactic use has not even been investigated let alone proven.  And since we have now demonstrated that you can take a stable patient and turn them into an unstable one the summary of the published evidence now is:

  • Harm from binder application in stable patients = 1
  • Benefit from binder application in stable patients = 0

I acknowledge that prevention of haemorrhage is fundamentally difficult to prove but we have decided to join the Queenslanders.  We will position it in stable patients if we are suspicious but it is only tightened if and when the patient becomes unstable.  First do no harm.  If they are haemodynamically stable you can’t make things better, but you can makes things a whole lot worse.

Second…

Our next consideration as per the previous posts parts 1-4 is the mechanism.  If it is clearly a lateral compression fracture then there is not even a biologically plausible way a binder can help.  If you are doing an interfacility transfer, you have an Xray and it is a LC fracture, do not apply a binder no matter how haemodynamically unstable the patient is.  Every reported case who has had a rise in BP associated with a binder has had either anteroposterior compression (the majority of cases) or a vertical shear injury.  Therefore the evidence base for lateral compression fracture so far is:

  • Harm from binder application in patients with LC injury = 1
  • Benefit from binder application in patients with LC injury = 0.

Just don’t do it.

Now of course prehospital it can be really hard to know what the fracture type is.  But there are occasions where it can only be a lateral compression such as in MVAs where the impact is directly into the patient’s door with intrusion against their pelvis laterally.  Here is an example repeated from part 3:

Crash copy



In this case the car has slid into the pole sideways.  The impact is directly into the driver’s door who has been pushed across the cabin partially onto the passenger seat breaking the centre console in the process.  This can only be a lateral compression fracture and that is indeed what was found on pelvic plain film in the ED.  We no longer put binders on these patients, no matter how unstable they are – the binder has no plausible mechanism by which it can improve things.

Third…

The last part of the equation for us was the policy of application by the local Ambulance service which I have already mentioned.  We often turn up to find that a binder has already been applied.  Should we take it off again if stable?  If unstable and it really looks like a lateral compression injury?  The damage if any has probably already been done.  We are operating in an evidence free zone here of course.  Our consensus of opinion was that if it was properly applied we should just leave it there.

So we derived an algorithm which works through these steps in the reverse order that I have discussed them as that is the workflow in the real world:

Binder Algorithm

So the only patients who get a binder placed and tightened are the unstable patients where lateral compression is not likely from what we can see of the mechanism or we just don’t know the mechanism.  If you re-read part 3 this is the group we are suggesting that ultrasound may help in the decision making.  Benefit (in terms of improved BP, not survival) has only been demonstrated in patients with a widened symphysis so perhaps this is your single best clue that you have identified a patient who is likely to benefit from the intervention – if such a group actually exists.

The Wrap

The belief that pelvic binders are a benign intervention is becoming widespread even though there are already reports of serious complications such as massive necrosis from pressure injury (have a look here).  No intervention helps all patients, and all interventions carry risk.  The key is identifying the patients where the benefit outweighs the risk.  Given that proof of benefit from binders does not yet exist, think very carefully about the risk that you could make things worse by tightening it and converting a stable patient into an unstable one.  Use it only where the possibility of benefit outweighs the risk and there is just no possibility of benefit in a known lateral compression injury.  It can therefore never be justified if you know that is the injury type.  Similarly there is zero evidence of any kind for prophylactic use in stable patients, just a theory and even the theory does not make sense in lateral compression.

I find it difficult to believe that this is the first time a patient has deteriorated with a binder – we are just the first group to report it because we have been looking.  Complications are typically poorly reported in prehospital care for a number of cultural reasons (see Davis’ classic work on prehospital intubation where significant complications were picked up only by examining the monitor output; it was not reported by the clinicians).  Perhaps the temporal relationship between the binder and deterioration is not as clear as in this case, or the patient is already unstable and it is not possible to differentiate the additional bleeding caused by the binder from the bleeding that was already happening.  Or the subsequent instability is not attributed to the binder by the caregivers who think “just as well we put the binder on” without realising they actually caused it.

We would be really interested to hear if anyone else has observed this too.  But you won’t notice if you don’t look.  In the meantime I think we all need to examine our practices to ensure that are only applying the devices where there is a possibility that the patient will benefit from this as yet unproven intervention.  If there is no possibility of benefit, just don’t do it.



Notes:

You could always start with public cases like this to reflect on what we could do differently with pelvic binders.

Here’s the thing on the pressure necrosis with a pelvic binder again:

Mason LW, Boyce DE, Pallister I.   Catastrophic myonecrosis following circumferential pelvic binding after massive crush injury: A case report doi:10.1016/j.injury.2009.01.101

And if you’re interested in the stuff on this site you can always find the spot on this page to get your email in there

The Bind About Pelvic Binders – Part 4

Is this the last bit for now? Dr Alan Garner following up on pelvic binders after all the stimulating comments. If you haven’t already, check out part 1, part 2 and part 3.

During the writing of part three of this series on pelvic fractures and particularly after reading Julian Cooper’s comments (thank you Julian) I realised that the observational data around pelvic binders does not entirely fit with the theories. Let’s start with the theory and I might directly borrow Julian’s comments from Part 2 as he says it better than I could:

“In any type of pelvic injury. the bleeding will be either:

  1. Venous or bone ends: in which case keeping things still with a binder is likely to allow clot formation (low pressure bleeding, low or high flow).
  2. “Slow” arterial (the sort of thing seen as a blush on contrast CT) which will probably trickle on even with a binder but at a rate which is compatible with survival to hospital and (ideally) interventional radiology if they don’t stabilise spontaneously (high pressure, low flow bleeding).
  3. “Fast” arterial (e.g. free iliac rupture) which is likely to be fatal whatever one does, binder or not (high pressure, high flow bleeding).”

I need to state right up front that I agree with all of this. It all seems entirely reasonable and there is some cadaver evidence that movement of fractures associated with patient movement (e.g. sliding a patient from stretcher to a bed) is reduced when a binder is applied. It seems reasonable that a binder might slow, or at least reduce aggravation of venous and bone end bleeding with movement. It might even help the “slow” arterial bleeders too.

So what is my issue with all this? Studies like the Tan paper (15 patients) describe a dramatic and immediate increase in blood pressure associated with applying a binder to an “open book” style fracture and reducing it. Mean arterial pressure increased from 65mmHg to 81 and HR fell from 107 to 94 per min 2 minutes after application. The effect was associated with (although of course not necessarily caused by) reduction of the fracture. Nunn’s series of 7 patients showed even more dramatic changes in blood pressure measured at 15 minutes post binder application although they do not report the degree of fracture reduction achieved. Again we are dealing with tiny numbers of patients but the effect seems consistent – in shocked patients with anteroposterior compression or mixed type injuries who have a binder applied the blood pressure usually immediately rises (note one patient in Tan series who significantly deteriorated). In Nunn’s series with BP reported at 15 mins post application it is possible that the pelvis was “stabilised” and then a big fluid bolus was given but this cannot be the case in the Tan series where the effect is seen immediately.

Stabilising the pelvis against further movement and stopping venous and bone end bleeding cannot be the mechanism for this sudden rise in BP. Even stopping the “slow” arterial bleeders could not create such an immediate effect.

So what is going on? Warning – brainstorming not supported by any evidence following:

  • Compression of arteries in the pelvis resulting in increased systemic vascular resistance? (warned you about the brain storming – this seems pretty unlikely to me)
  • Compression of distended venous spaces causing a fluid shift back into the central circulation and increased BP. If this is the case then what you are seeing is a MAST suit effect and this has been shown to not necessarily be a good thing if you don’t also stop the bleeding.
  • One of my colleagues suggested it is pain associated with binder application that is causing the BP rise? Again doubt this is the case. Also not sure this is helpful if you are not also stopping the bleeding (as per MAST suit issues)

I don’t actually have a good theory for what is going on here but the effect is very clearly described in the literature. It seems to be a good thing although the Nunn paper in particular notes that ongoing volume resuscitation and other measures to stop the bleeding are usually then required. If anyone has any theories on what is happening here then please share with the rest of us.

A Recap

I might summarise the literature on pelvic binders as:

  • No study has yet demonstrated a significant decrease in mortality associated with binders
  • Increased fragment displacement, haemodynamic deterioration and some really ugly pressure injures (have a look at the case report by Mason for an absolute shocker) have been described with their use i.e. they are not benign.
  • They might decrease venous and bone end bleeding by preventing movement but we currently have no direct evidence to support this. Agree that this seems reasonable though.
  • An improvement in haemodynamics is often seen immediately at the time of application of a binder in shocked patients with an open pubic symphysis. Mechanism for this is currently unknown and we don’t have enough evidence to know whether this is actually a good thing or not. Going right back to part 1 of this series we should be very cautious about using surrogates such as improved BP as measures of outcome or binders may turn out to be MAST suit Mark 2.

I don’t want to be a wet blanket but I do believe that this is a realistic evaluation of the current evidence.

The Bottom Line on What I Do

Do I personally use binders prehospital?

Yes I do unless the injury is clearly lateral compression. I also am not afraid to loosen it again if the patient deteriorates. I think they are helpful for the open symphysis patients based on the documented haemodynamic improvement often seen in these patients but I acknowledge that I am hoping that this BP rise translates into lower mortality but I don’t have evidence to support this. I definitely will never criticise someone who has not put one on as there is just not enough evidence one way or the other.

Time for a segue – and perhaps a paradigm shift.

Come this way for other new thoughts but no more bad visual puns, people of the future. [Via Alan Kotok on flickr under CC 2.0]
Come this way for other new thoughts but no more bad visual puns, people of the future. [Via Alan Kotok on flickr under CC 2.0]
The Ones Who Need More

Let’s look at Julian’s group 3: – ”Fast” arterial (e.g. free iliac rupture) which is likely to be fatal whatever one does, binder or not (high pressure, high flow bleeding). Again I agree with Julian here. These patients can die in minutes as is usually the case if you lacerate a vessel the size of the iliac artery, and there is absolutely nothing you can do about it prehospital.

Or is there?

Another thing I was taught as a boy is that if you can’t control arterial bleeding at the haemorrhage site then get proximal control. So how can you get proximal control for a punctured iliac artery? Clearly we are talking about occluding the aorta here but how do you achieve this prehospital?

The idea of REBOA (resuscitative endovascular balloon occlusion of the aorta) in the prehospital context has been getting a bit of attention with London HEMS recently introducing it. Now this sounds really sexy but it requires a skilled doctor with an ultrasound machine, time and good access to the patient. What I am proposing is the much simpler version of REBOA where the E stands for “External”.

Conflict of interest statement: Neither I nor either of my employers have a financial interest in the manufacture or distribution of the device I am about to mention – I just think it is a really cool idea.

AAJT copy

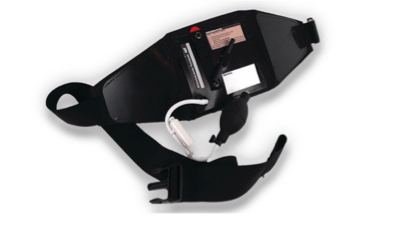

The device is the Abdominal Aortic and Junctional Tourniquet (AAJT) (here’s the link to the manufacturer’s website for their obviously positive coverage). A reasoned discussion on the relative merits of AAJT over traditional endovascular REBOA and some of the literature on both approaches can be found here.

The nice thing is that it sits around the waist and does not limit access to groins so that endovascular REBOA remains an option when you hit the trauma centre. If you can get one of these things on fast enough then even free rupture of an iliac vessel will potentially be controllable.

There are no reports yet of this device being used in catastrophic pelvic fracture haemorrhage but there are lots of reports of manual compression of the aorta being used in other causes of massive pelvic haemorrhage such as penetrating trauma, post partum haemorrhage and pelvic surgery. There are reports of the device being successfully used for massive bilateral lower limb injury in the military context. It should work in pelvic fracture too if proximal control is the key (famous last words).

The AAJT seems like the ideal prehospital device as you can place it in about 45 secs, in some situations you may be able to place it in a patient who is still trapped or whilst in transit to the hospital. That is just not going to happen with endovascular REBOA. And of course you don’t need a highly skilled physician with an ultrasound machine. Might have lower sex appeal factor but if occluding the aorta saves lives, this device is going to save far more lives than endovascular REBOA as it can be applied by a lot more people in a wider variety of situations. It is possible to put on an AAJT as well as a Pelvic binder as the binder sits around the greater trochanters and the AAJT is positioned over the umbilicus.

My own service has now acquired some AAJTs and we are about to introduce them to service. We will try and update you on our experience as it is early days yet for this device.

Lastly apologies to Julian if I have in any way misrepresented his opinions or taken his comments out of context. His comments certainly got me thinking however and that is what the Collective is supposed to be about so thanks Julian for contributing.

References:

Mason LW, Boyce DE, Pallister I.   Catastrophic myonecrosis following circumferential pelvic binding after massive crush injury: A case report doi:10.1016/j.injury.2009.01.101

The Bind When It Comes to a Binder (Part 3)

There’s been a lot of stimulating discussion after parts 1 and 2 of this series from Dr Alan Garner (you can check those here and here). Here’s part 3.

Thanks for sticking with the discussion so far. In part 2 we had a look at AP compression injuries and lateral compression injuries. Short summary is binders make sense and there is some observational evidence of benefit in AP compression injuries. However in lateral compression, binders make no biomechanical sense and there is definite evidence they increase fracture displacement both in cadavers and real live trauma patients.

The final group that we have not yet considered in the Young and Burgess classification is the vertical shear group. These patients are complex because the injuries are both horizontally and vertically unstable. You will see what I mean if you have a look at this Xray:

Pelvic Xray copy

Is putting a binder around the greater trochanters and pulling going to help? Will it produce anatomical realignment? I think you will agree that it is hard to know. In this case it might rotate the left hemipelvis inward and create even more distortion. You might also guess that some traction on the left leg before you apply the binder might get a better result too. More on this later.

Is there any actual evidence that things can get worse with a binder in vertical shear? Tan’s paper had six of this injury type. Two of the six had a fall in MAP immediately after the binder was applied, one by 20mmHg! It is a bit crazy that we are discussing studies with six patients but this is the level of published evidence to date. Such as it is, the evidence is that one in three vertical shear injuries deteriorated immediately after the binder was placed. Toth’s paper found that 14/17 patients had improved alignment post binder in this group so it often does some good. Unfortunately you have to think really carefully about this group, and be prepared to loosen it off again if you don’t get the response you were hoping for.

Yes, loosen it if the patient deteriorates! Primum non nocere. Remember there is as yet no study that has shown significant mortality improvement with pelvic binders. They are not a standard of care. If what you do makes thing worse then backing off is the right thing to do. I try not to let my own psychological need to do everything I can for the critically injured patient in front of me drive me to do things that might actually harm the patient. Sometimes less is more.

So what are we left to conclude?

  • AP compression – makes biomechanical sense and low level evidence binders help
  • Lateral compression – makes no biomechanical sense and real world evidence binders increase fracture displacement. Is “just holding it still” enough?
  • Vertical shear – a really difficult group; evidence of haemodynamic and anatomical improvement in the majority but clinically significant deterioration has also been documented
  • The real world as always is a bit more complex than this and mixed injury types happen
  • And of course, no evidence yet overall that binders have a significant effect on the outcome that matters in this case –mortality.

It should be pretty obvious that the type of fracture should be the guide to whether or not a binder might help. This is great if you are doing an interhospital transport and have an Xray. Not really helpful though if you are at the roadside, on an oil rig, or at a remote clinic 1000kms from the nearest trauma centre with no imaging (as our teams frequently are). So how can you work out whether a binder will help?

First thing is reading the injury mechanism. If you are at the scene you may get a lot of clues about the force vector, particularly in motor vehicle trauma. This is a photo of an incident I attended a few months ago.

Powerpole copy

In this case the car had slid sideways into the power pole striking the driver directly in the right side with such force that she had broken the centre console with the left side of her pelvis and was partially in the passenger seat. This can only be a lateral compression injury and there is no way a binder can help. Direct frontal injuries are also pretty obvious and the injury type is going to be an AP compression if a pelvic ring fracture is present.

This is good as far as it goes. It really does not help much with other mechanisms like pedestrians and motor cyclists. Were they side-on or front-on when they were hit by the truck? Motor cyclists can have a significant rotational component to their flight before they hit something which can make prediction of injury patterns really problematic.

There is one other trick which can give you a really valuable clue. Symphyseal diastasis is the hall mark of the AP compression injury. This is the sign that the “book is open”. If you can identify this then you can identify the group that is likely to benefit from a binder to “close the book” (although some will have vertical shear so care is still required). This is yet another use for my trusty companion, the handheld ultrasound.

The width of the pubic symphysis can easily be measured with the same high frequency linear probe that you use to exclude a pneumothorax. The upper limit of normal width measured at the point shown in the image is <25mm in adults (Bauman). I am not aware of any published data on children. As with all things there is a bit of variation here and cadaver studies have shown that anterior sacroiliac ligament disruption is likely for displacement greater than 45 mm and unlikely for values less than 18mm. So if the symphysis is less than 18mm you can be very confident the pelvis is not “open”.

Ultrasound copy

Clinical ultrasound copy

Note that in the source study for the reference range they failed to achieve a measurement in one case because the symphysis was wider than the width of their probe. You may have to move the probe from side to side to pick up both sides of a really wide symphysis.

If the patient does not have symphyseal widening on the other hand there is no reason to believe that a binder will help and they may well have an injury type that will be worsened by a binder (the symphysis does not open in lateral compression). Ultrasound is likely to be our best guide as to which patients have the possibility of benefitting from a binder whilst avoiding those where harm is the more likely outcome.   Some patients with vertical shear and an open symphysis may still deteriorate so there is no guarantee, but ultrasound will at least allow you to identify the group who have the possibility of benefit rather than harm.

As with so many things in prehospital care we need some good studies in this area. In the meantime, read the mechanism, read your ultrasound screen and be judicious in applying binders. Harm has occurred with these devices – they are not a universal panacea. Much of the art of medicine is picking the right patient for the intervention so you maximise benefit and minimise harm. This patient group is no different.

And thanks for the comments. Julian Cooper’s thoughts helped me work through my own theories on the issues and I have realised that our theories and the observational evidence don’t seem to align. There is also some potential new approaches to the massively haemorrhaging pelvis that are easily applicable in the prehospital environment and those are worth looking at too.
